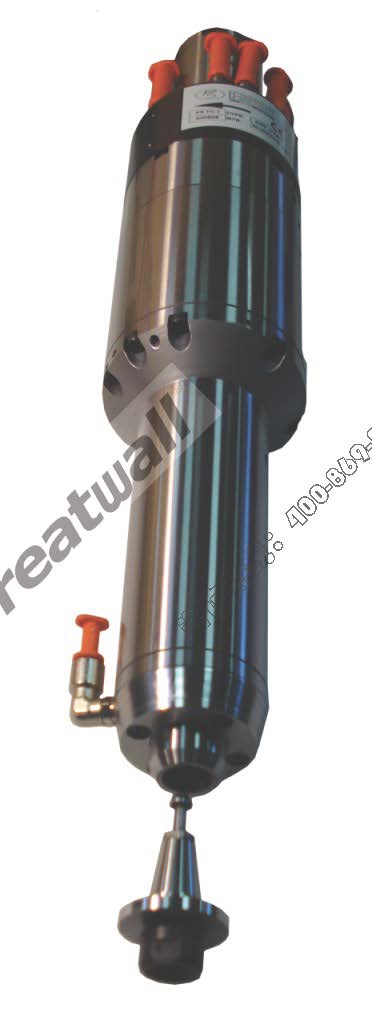

PS电主轴展品信息
产品型号：PS-TC-2-V -SP
产品各项技术参数：
1.Max speed 最高转速：30000r/min
2.Max torque最大扭矩：5.9N.m (S1)
3.Max power 最大功率：5KW (S1)
4.Spindle's front largest diameter with cooling water jacket主轴带电机冷却水套后前端最大安装直径：￠100mm
5.Taper of spindle runout 主轴锥孔跳动：0.002mm
6.Ø40 front hybrid ceramic bearing主轴前端轴承最大直径为：￠40mm
7.Electric connection 电气连接
3 phases motor - earth 三相电机- 接地
8.outlet sensor’s cables (S1 – S2 – S3 – S4 ) 刀具传感器
S1 = Tool’s arbor clamped 刀具夹紧时
S2= piston under pressure ready for receving tools arbor 无刀状态监测
The electrospindle cannot turn 主轴不可旋转
S3= signal of spindle rotating 主轴旋转
S4= tool’s arbor not clamped 未装刀状态监测
The electrospindle cannot turn 主轴不可旋转
9.inlet air coolant motor(6 bar) (G1/8″)冷却液入口(6 bar) (G1/8″)
10.coolant outlet (G1/8″)冷却液出口
11.oil inlet to block the shaft (50 bar) (Ø5) 轴密封油入口
12.hydraulic pressure unclamping tool ( 50 bar max) (G1/8″) 液压松刀
13.tool’s lubro refrigerant inlet by rotary joint (G1/4″) max 80 bar 旋转接头冷却液入口
14.Rear bearings lubrication (G1/8″) 后端轴承润滑
15.Front bearings lubrication (G1/8″) 前端轴承润滑
16.Front – side pressurization ( 1-1.5 bar max) (G1/8″) 前端气密封
17.Unloading lubrication bearings (G1/8″) 轴承润滑泄油口
18.Rotary joint leackage outlet (G1/8″) 旋转接头泄油口
19.Tool cooling (Ø5) 刀具冷却
产品特点：
1. 主轴关键零部件配置采用欧洲著名品牌的ATE电机、L+B编码器、SNFA陶瓷球轴承、OTT旋转接头、balluff传感器。The main parts using famous brand in europe ATE motor, SNFA ceramic ball bearings, Balluff sensor
2. 主轴液压松刀，松刀压力最大50bar，主轴刀具卡紧用碟簧。hydraulic pressure unclamping tool , max pressure 50bar, tool clamping with disc spring, hydraulic pressure clamping tool 50bar (rerurn cylinder piston).
3. 主轴电机轴承需采用外置水冷机循环水冷，并采用KTY84温度传感器对主轴电机进行温升监控。spindle motor bearings need to adopt an external water cooler , and using KTY84 to check motor and the bearing temperature
4. 主轴轴承采用油气润滑。Bearings lubrication by air-oil
5. 主轴装有四个balluff数字量检测开关，分别检测主轴刀具卡紧到位、刀具松开到位及无刀卡紧到位，主轴旋转。outlet sensor’s cables (S1 – S2 – S3 – S4 ) 刀具传感器
S1 = Tool’s arbor clamped 刀具夹紧时
S2= piston under pressure ready for receving tools arbor 无刀状态监测
The electrospindle cannot turn 主轴不可旋转
S3= signal of spindle rotating 主轴旋转
S4= tool’s arbor not clamped 未装刀状态监测
The electrospindle cannot turn 主轴不可旋转
6. 主轴可作为车削轴使用，主轴芯轴液压抱紧压力50bar。spindle shaft hydraulic clamping pressure 50bar.
7. 可采用HSK-A40刀柄形式。Tool holder HSK-A40
8. 具有中心水冷通道，能实现长刀冷却功能，最大中心水冷压力可达到80bar。central water channel, can realize long cooling function. The largest center water pressure can reach 80bar
9. 具有锥孔吹气功能，实现主轴换刀过程中的刀柄及锥孔的清洁。Tool cleaning
10. 具有主轴前端轴承气密封功能。Front, – side pressurization
11. 主轴前端具有刀具外冷环喷功能。Adjustable nozzle
12. 主轴电机自带外冷水冷套，无需用户自己设计水冷套，安装使用更加方便可靠。Spindle with cooling water jacket
产品图纸：
如需查看图纸,请点击http://www.greatwalltrade.com/tz/846-00-08.pdf
