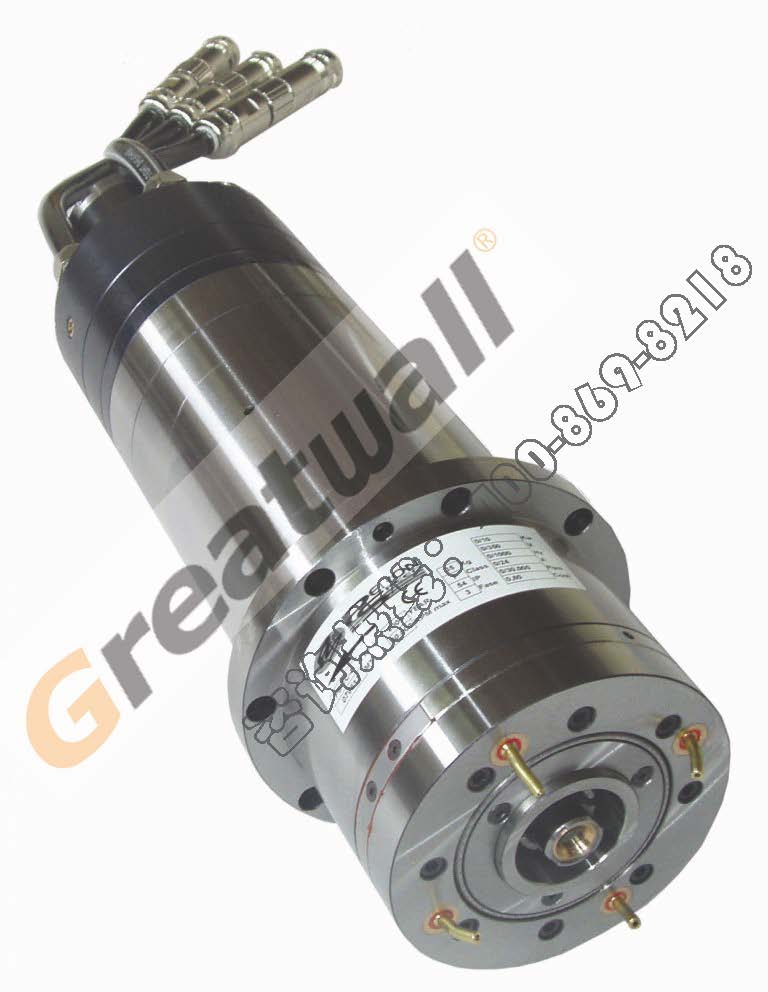

PS电主轴展品信息
产品型号：PS-TCV-9-S
产品各项技术参数：
1.Max speed最高转速：12000r/min
2.Max torque最大扭矩：290N.m (S1)
3.Max power 最大功率：20KW (S1)
4.The point speed of power and the torque switching功率扭矩切换拐点转速：6300rpm
5.Spindle's front largest diameter with cooling water jacket主轴带电机冷却水套后前端最大安装直径：￠260mm
6.Taper of spindle runout主轴锥孔跳动：0.002mm
7.Ø40 front hybrid ceramic bearing主轴前端轴承最大直径为：￠100mm
8.inlet air coolant motor(6 bar) (G1/8″)冷却液入口(6 bar) (G1/8″)
9.coolant outlet (G1/8″)冷却液出口
10.hydraulic pressure unclamping tool ( 50 bar max) (G1/8″) 液压松刀
11.inlet oil clamping tool (return piston) ( 50 bar max) (G1/2″)拉刀进油口（活塞复位）
12.Electric connection 电气连接
3 phases motor - earth 三相电机- 接地
13.outlet sensor’s cables (S1 – S2 – S3 – S4 ) 刀具传感器
S1 = Tool’s arbor clamped 刀具夹紧时
S2= piston under pressure ready for receving tools arbor 无刀状态监测
The electrospindle cannot turn 主轴不可旋转
S4= tool’s arbor not clamped 未装刀状态监测
The electrospindle cannot turn 主轴不可旋转
14.Front – side pressurization ( 1-1.5 bar max) (G1/8″) 前端气密封
15.Tool cooling (Ø5) 刀具冷却
16.outlet encoder’s cables (Gel 2442 KN) 编码器出口
17.Motor thermich switch (N°2 KTY) 电机温度传感器
rear-side pressurization (1-1.5 bar max)16/1) 后端气密封
Inlet air 2 bar (M5) 进气
Outlet air /liquid (M5) 泄气/液体
18.tool’s oil refrigerant inlet by rotary joint (G1/4″) max 80 bar 旋转接头的刀具冷却液入口
19. rotary joint leackage outlet (G1/8″) 旋转接头泄油口
产品特点：
1.主轴关键零部件配置采用欧洲著名品牌的ATE电机、L+B编码器、SNFA陶瓷球轴承、OTT旋转接头、balluff传感器。The main parts using famous brand in europe ATE motor, SNFA ceramic ball bearings, Balluff sensor
2.主轴液压松刀，松刀压力最大50bar，主轴刀具卡紧用碟簧，卡刀时所需液压压力最大50bar（顶液压缸活塞用）。hydraulic pressure unclamping tool , max pressure 50bar, tool clamping with disc spring, hydraulic pressure clamping tool 50bar (rerurn cylinder piston).
3.采用外置水冷机循环水冷，并在电机处采用KTY84、前后端支持轴承处采用PT100温度传感器分别对主轴和轴承进行温升监控。spindle motor bearings need to adopt an external water cooler , and using KTY84, the front and end bearing with PT100 temperature sensor to check motor and the bearing temperature
4.久脂润滑。Bearings's lubrication by permanent grease
5.轴装有三个balluff数字量检测开关，分别检测主轴刀具卡紧到位、刀具松开到位及无刀卡紧到位。outlet sensor’s cables (S1 – S2 – S4 ) 刀具传感器
S1 = Tool’s arbor clamped 刀具夹紧时
S2= piston under pressure ready for receving tools arbor 无刀状态监测
The electrospindle cannot turn 主轴不可旋转
S4= tool’s arbor not clamped 未装刀状态监测
The electrospindle cannot turn 主轴不可旋转
6.可采用HSK-A100\ISO\BT50刀柄形式。Tool holder HSK-A100 \BT50
7.具有中心水冷通道，能实现长刀冷却功能。central water channel, can realize long cooling function.
8.具有锥孔吹气功能，实现主轴换刀过程中的刀柄及锥孔的清洁。Tool cleaning
1- 具有主轴前后端轴承气密封功能。Front, rear – side pressurization
9.主轴前端具有刀具外冷环喷功能。Adjustable nozzle
10.主轴电机自带外冷水冷套，无需用户自己设计水冷套，安装使用更加方便可靠。
Spindle with cooling water jacket
产品图纸：
如需查看图纸,请点击http://www.greatwalltrade.com/tz/1088-03.pdf
